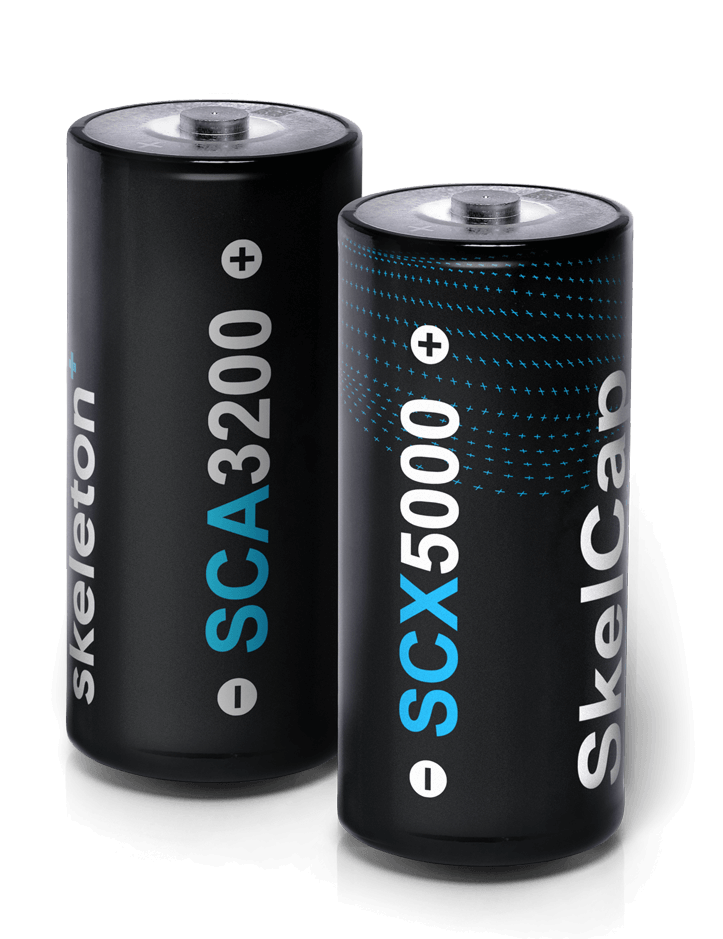

SKELCAP ULTRACAPACITORS

Superior power & energy density with a competitive cost

The SkelCap ultracapacitor cells bring the benefits of our patented production technology to a form factor most commonly found in the industry. Industry-leading performance for mass market applications to give you the upper hand over the competition. All SkelCap ultracapacitors are 2.85V and the Farads range from 1200F to 3400F.

SCA Ultracapacitors
SkelCap SCA1200*
SkelCap SCA1800*
SkelCap SCA3200

SCK/SCL/SCI  Ultracapacitors
SkelCap SCK3000
SkelCap SCL3000
SkelCap SCI3400

*Minimum order quantity: 30 000 cells

Product Type
Capacitance
Voltage
ESR (DC)
Specific Power
Specific Energy
SKELCAP SCA1200
Weldable
1200 F
2.85 V
0.29 mOhm
73 kW/kg
5.4 Wh/kg
SKELCAP SCA1800
Weldable
1800 F
2.85 V
0.27 mOhm
46.4 kW/kg
6.0 Wh/kg
SKELCAP SCA3200
Weldable
3200 F
2.85 V
0.18 mOhm
34.6 kW/kg
6.8 Wh/kg
SKELCAP SCK3000
Weldable
3000 F
2.85 V
0.22 mOhm
23.8 kW/kg
6.7 Wh/kg
SKELCAP SCL3000
Threaded
3000 F
2.85 V
0.23 mOhm
21.3 kW/kg
6.3 Wh/kg
SKELCAP SCI3400
Threaded
3400 F
2.85 V
0.21 mOhm
22.1 kW/kg
7.1 Wh/kg

SkelCap ultracapacitor cells can be used for example in the following applications

Wind

  • Wind Turbine Pitch control
  • Power boost

Automotive

  • 48V Active Suspension
  • 12V Start Stop
  • Power Backup
  • Brake Energy Regeneration



Industrial

Oil & Gas

  • Peak shaving
  • VSD Backup
  • Energy recovery
  • Engine start
  • Generator Gradient Control

Medical

  • MRI Power Quality
  • CT Power Quality

SkelCap Ultracapacitors

Superior power and energy density with competitive cost

Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is up to 80 kW/kg and specific energy up to 6.8 Wh/kg with ESR as low as 0.13 mOhm- the highest performance ultracapacitors in the market.
Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is ...

SkelCap SCA1200 Ultracapacitor Cell

Superior power and energy density with competitive cost

Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is up to 80 kW/kg and specific energy up to 6.8 Wh/kg with ESR as low as 0.13 mOhm- the highest performance ultracapacitors in the market.
Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is ...

SkelCap SCA1800 Ultracapacitor Cell

Superior power and energy density with competitive cost

Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is up to 80 kW/kg and specific energy up to 6.8 Wh/kg with ESR as low as 0.13 mOhm- the highest performance ultracapacitors in the market.
Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is ...

SkelCap SCA3200 Ultracapacitor Cell

Superior power and energy density with competitive cost

Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is up to 80 kW/kg and specific energy up to 6.8 Wh/kg with ESR as low as 0.13 mOhm- the highest performance ultracapacitors in the market.
Our ultracapacitors are available in the industry-standard D60 (60 mm) form factor. Specific power performance is ...

SkelCap SCK3000 ultracapacitor

Superior power and energy density with competitive cost

SkelCap SCK3000 Ultracapacitor Cell
Class-leading ultracapacitor in energy and power density.


SkelCap SCK3000 offers 2.85V and 3000F with weldable terminals.

SkelCap SCK3000 Ultracapacitor Cell
Class-leading ultracapacitor in energy and power density.


SkelCap ...

SkelCap SCI3400 ultracapacitor

Superior power and energy density with competitive cost

SkelCap SCI3400 Ultracapacitor Cell
Class-leading ultracapacitor in energy and power density.


SkelCap SCI3400 offers 2.85V and 3400F with threaded terminals.

SkelCap SCI3400 Ultracapacitor Cell
Class-leading ultracapacitor in energy and power density.


SkelCap ...

SkelCap SCL3000 ultracapacitor

Superior power and energy density with competitive cost

SkelCap SCL3000 Ultracapacitor Cell
Class-leading ultracapacitor in energy and power density.


SkelCap SCL3000 offers 2.85V and 3000F with threaded terminals.

SkelCap SCL3000 Ultracapacitor Cell
Class-leading ultracapacitor in energy and power density.


SkelCap ...

"Ultracapacitors and the innovation Skeleton Technologies has brought to the market is not only a great technology, but make a great business case. Ultracapacitors provide a high power density and amazing durability. "

Pilar Molina - CEO
Epic Power

"We have tested all the leading suppliers on the market and are convinced that Skeleton Technologies has by far the best offer. The lowest internal resistance (ESR) and highest efficiency levels of Skeleton’s ultracapacitors lets us explore new solutions that were not thinkable with other products."

Valter Arosio - CEO
DIMAC RED S.p.A.

"Skeleton’s advantage is that they are able to bring ultracapacitors to a cost level that makes them a really attractive solution for many issues in electric grids."

Bo Normark - Thematic Leader Smartgrid & Storage
InnoEnergy

"Skeleton Technologies brings the necessary quality mindset to critical applications. The highest power density and efficiency in the industry provides us with a very clear competitive advantage."

Stanislav Wizur -
Škoda Electric Strategic Purchasing

Ultracapacitors Key Facts & Benefits

Ultracapacitors, or supercapacitors as they are also
known, are an energy storage technology that
offers high power density, almost instant charging and discharging, lifetimes of 15+ years, and extreme reliability even in harsh conditions.
Fast energy storage, such as ultracapacitors, is increasingly important for the electrification of the largest industries in the world. Ultracapacitors help save energy and decrease emissions in automotive, transportation, grid, and industrial applications.
Skeleton-Ultracapacitor-Manufacturing
Our products
  • Very long lifetimes of more than 1 million charge cycles
  • A wide range of operating temperatures, from -40°C to +65°C
  • 30% more efficient than batteries
  • Zero maintenance
  • Up to 60 times the power density achieved by batteries
  • No harmful chemicals or toxic metals, easy recycling
