Skeleton Technologies brings the necessary quality mindset to critical applications. The highest power density and efficiency in the industry provides us with a very clear competitive advantage.”
The most important benefits of
using SkelMod 162V Module
SkelMod 162V is the new and improved version of Skeleton's SkelMod 102V supercapacitor module, used by our customers across the globe in demanding, high-power grid and industrial applications. Ideal applications range from e-statcom, fast frequency response, and industrial UPS, to data center backup power.
Supercapacitors offer excellent reliability and lifetime, and the SkelMod 162V module is no exception. Powered by Skeleton's SkelCap SCH3400 supercapacitor cells, the SkelMod 162V module has a lifetime of more than million charge-discharge cycles, which in many applications means more than 20 years of continuous use.
The SkelMod 162V module is the building block for Skeleton's SkelGrid supercapacitor systems. With up to 10 modules per cabinet, one SkelGrid can provide megawatts of power and the ring-loop communication design of the SkelMod modules enables continuous communication and power even in a case of failure.

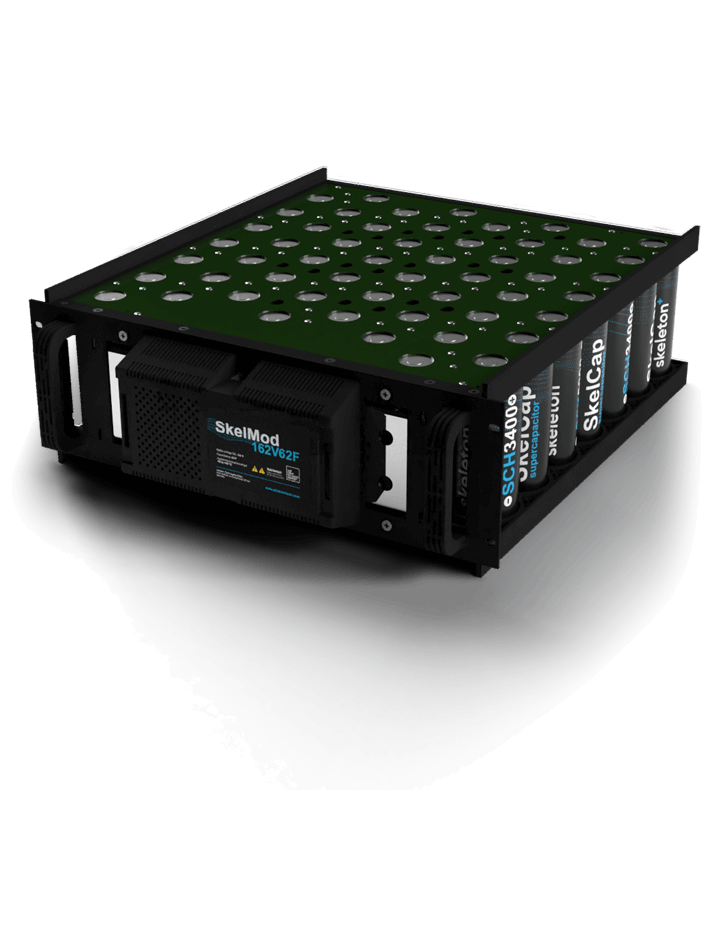

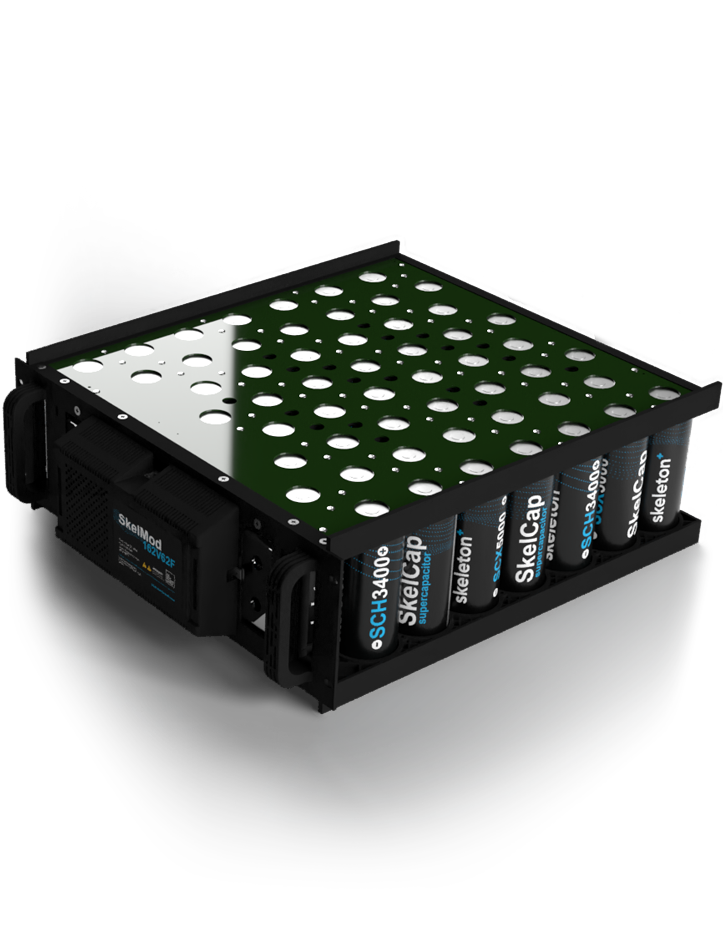

SkelMod 162V 62F supercapacitor module
Optimized performance to ensure high power quality for grid and industrial applications
The SkelMod 162V 62F supercapacitor module is the ideal choice for applications requiring high power, reliability, and modularity. Our rackable supercapacitor modules have been used with great success for years in frequency response, ramp-up, backup power, and peak shaving applications across industries.
Main parameters
SkelMod 162V 92F
- Voltage: 162V
- Capacitance: 62 F
- ESR (1s): 13.0 mOhm
- Max. stored energy: 203.9 Wh
- Rated power (1s ESR): 455.5 kW
Our technology
