Skeleton's SuperBattery is a game-changer in the world of energy storage. It fills the technological gap between supercapacitors and traditional batteries, offering the ideal combination of energy, power, and safety.
SuperBattery is bringing us closer to a net-zero future.
View SuperBattery benefits
SuperBattery benefits
SuperBattery is an innovative technology combining the characteristics of supercapacitors and batteries.
Less than 90 seconds of charging, eliminating long charging breaks.
SuperBattery has more than 10 times more charge-discharge cycles compared to Lithium-Ion batteries, providing much longer lifetime.
No thermal runaways, no need for thermal propagation measures. SuperBatteries are safe, even when pierced, crushed, or overheated.
SuperBatteries don't use cobalt, nickel, graphite, or copper.
Products
SuperBattery Racks, Modules, & Cells
Skeleton's SuperBatteries provide unmatched reliability, lifetime, and power/energy density. SuperBatteries are available in the forms of cells, or modules, serving customers in AI data centers, grid, automotive & heavy trucks, and aerospace companies.

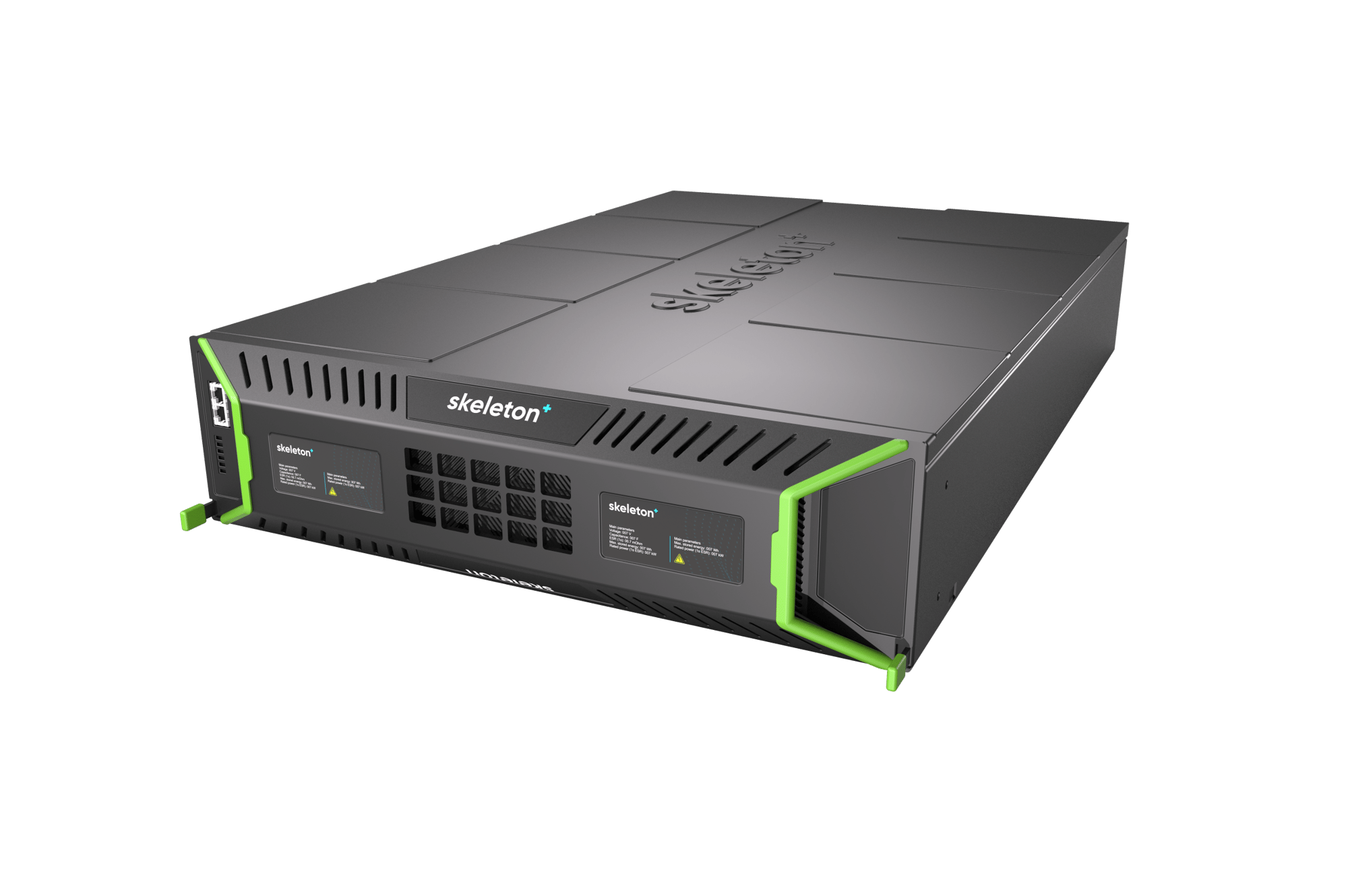

GrapheneBBU Modules for Data Centers
Battery Backup Unit (BBU) for data center backup power, based on Skeleton’s proprietary SuperBattery energy storage technology.
-
Integrated DC/DC converter and battery management system (BMS)
-
400 VDC interface voltage, configurable during installation to +400V or –400V with reverse polarity protection
-
Liquid-cooled
-
Skeleton Technologies’ patented Curved Graphene technology
Backup duration
Up to 90 seconds
Nominal Output Voltage
400V
Peak power
100 kW
Nominal Power
66 kW
Peak Efficiency
97%

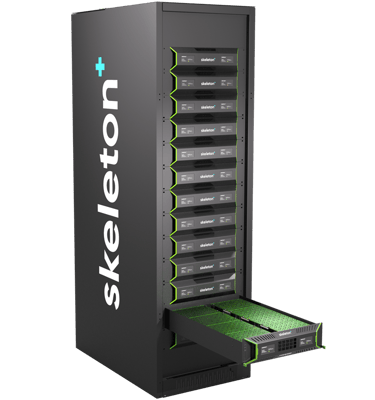

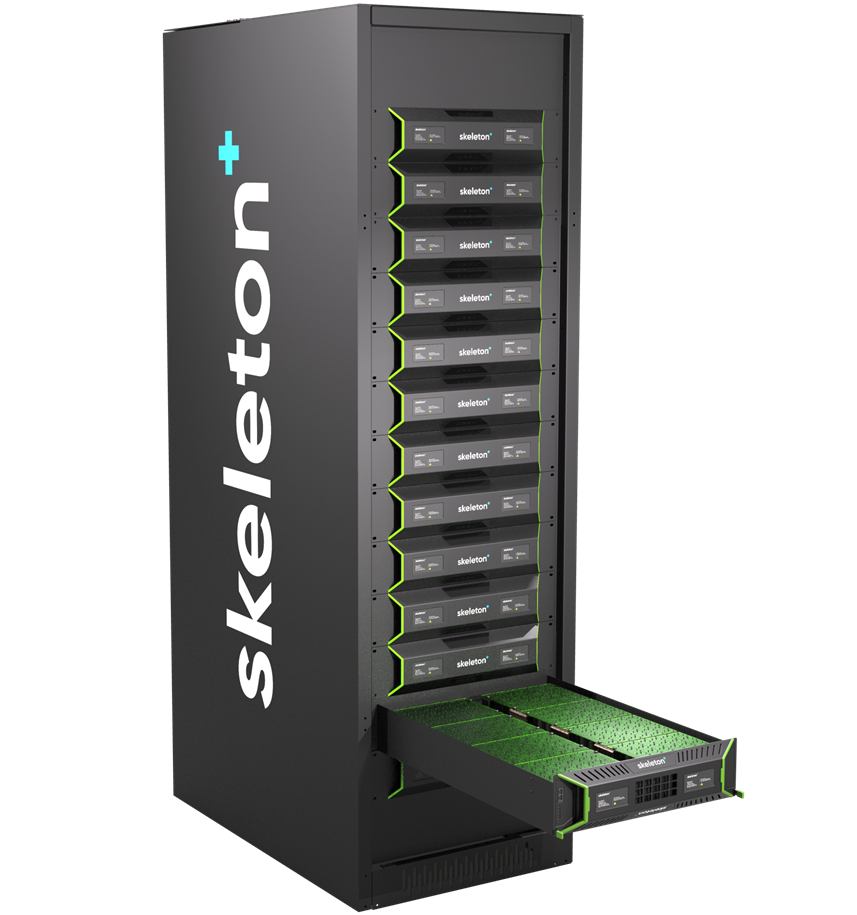

GrapheneBBU Racks for Data Centers
Battery Backup Unit (BBU) for data center backup power, based on Skeleton’s proprietary SuperBattery energy storage technology.
-
Integrated DC/DC converter and battery management system (BMS)
-
400 VDC interface voltage, configurable during installation to +400V or –400V with reverse polarity protection
-
Liquid-cooled
-
Skeleton Technologies’ patented Curved Graphene technology
Backup duration
Up to 90 seconds
Nominal Output Voltage
400V
Peak power
1.2 MW
Nominal Power
800 kW
Peak Efficiency
97%
SuperBattery D35 Cells
Designed for data centers, automotive, and other mission critical/high performance environment requiring flexible small form factor, extremely high power density, while maintaining enough energy capacity.
Nominal Voltage
1.8V
Power Density (10s)
6.3 kW/L
Energy Density
148 Wh/L
Lifetime
Up to 50,000 cycles
5s ESR
3.1 mOhm
SuperBattery D60 cells
Designed for Grid, stationary, mobile, and heavy duty mission critical/high performance environments. Requiring flexible form factors, extremely high power density, while maintaining enough energy capacity.
Nominal Voltage
1.8V
Power Density (10s)
7.1 kW/L
Energy Density
148 Wh/L
Lifetime
Up to 50,000 cycles
5s ESR
0.7 mOhm
GrapheneBBU Modules
Battery Backup Unit (BBU) for data center backup power, based on Skeleton’s proprietary SuperBattery energy storage technology.
-
Integrated DC/DC converter and battery management system (BMS)
-
400 VDC interface voltage, configurable during installation to +400V or –400V with reverse polarity protection
-
Liquid-cooled
-
Skeleton Technologies’ patented Curved Graphene technology
Backup duration
90 seconds
Nominal Output Voltage
400V
Peak power
100 kW
Nominal Power
66 kW
Peak Efficiency
97%
GrapheneBBU Racks
Battery Backup Unit (BBU) for data center backup power, based on Skeleton’s proprietary SuperBattery energy storage technology.
-
Integrated DC/DC converter and battery management system (BMS)
-
400 VDC interface voltage, configurable during installation to +400V or –400V with reverse polarity protection
-
Liquid-cooled
-
Skeleton Technologies’ patented Curved Graphene technology
Backup duration
90 seconds
Nominal Output Voltage
400V
Peak power
1.2 MW
Nominal Power
800 kW
Peak Efficiency
97%
D35 SuperBattery Cell
Designed for data centers, automotive, and other mission critical/high performance environment requiring flexible small form factor, high power density, extremely high C-rate, while maintaining enough energy capacity.
