Peak Power Shaving For AI Data CentersUnlock 40% More FLOPS With GrapheneGPU
How Skeleton helps
Unlock your AI Data Centers' Full Potential
Plug & Play

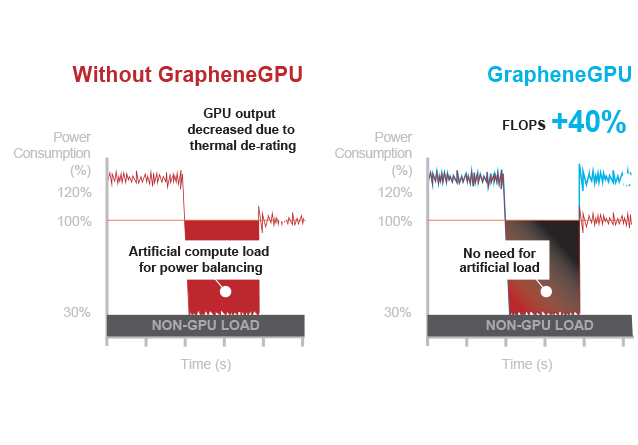

Up to 40% More Tokens/second
GrapheneGPU unlocks up to 40% more FLOPS from the same GPUs.
More Power In Less Space
With 80kW peak (40kW cont.) GrapheneGPU provides 50% more power density than the currently available power capacitor shelve.
By shaving peak loads when GPUs are computing, and charging when GPUs are not computing, GrapheneGPU eliminates the need for artificial compute loads, maintains a smooth power demand profile, while eliminating thermal de-rating on GPUs.
- Increase clock speed & operating voltage.
- Reduce overheating of GPU chips.
- Increase efficiency & revenue from added compute capacity.
- Under 10 µs dynamic reaction speed.
GrapheneGPU cuts the peak and fills the valleys of power fluctuations from the GPU, resulting in a 44% reduction in peak power connection requirement
- Reduce CAPEX by reducing the grid power connection when building a new datacenter.
- Increase compute capacity by adding more GPUs in existing datacenters, without needing to upgrade your grid connection.
- Improve data center energy efficiency.
AI data centers energy consumption optimization

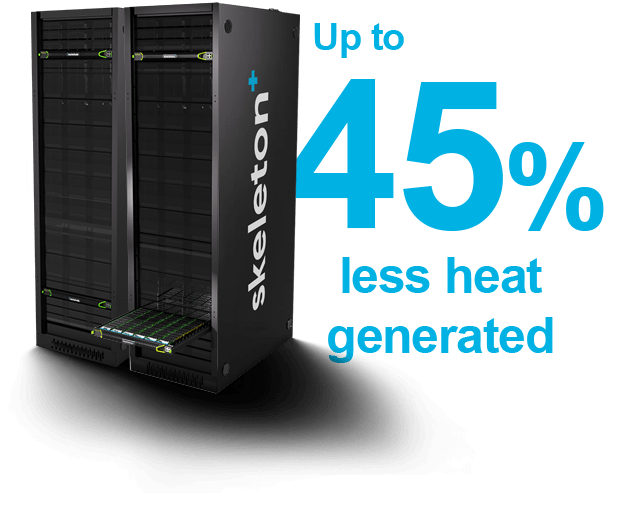

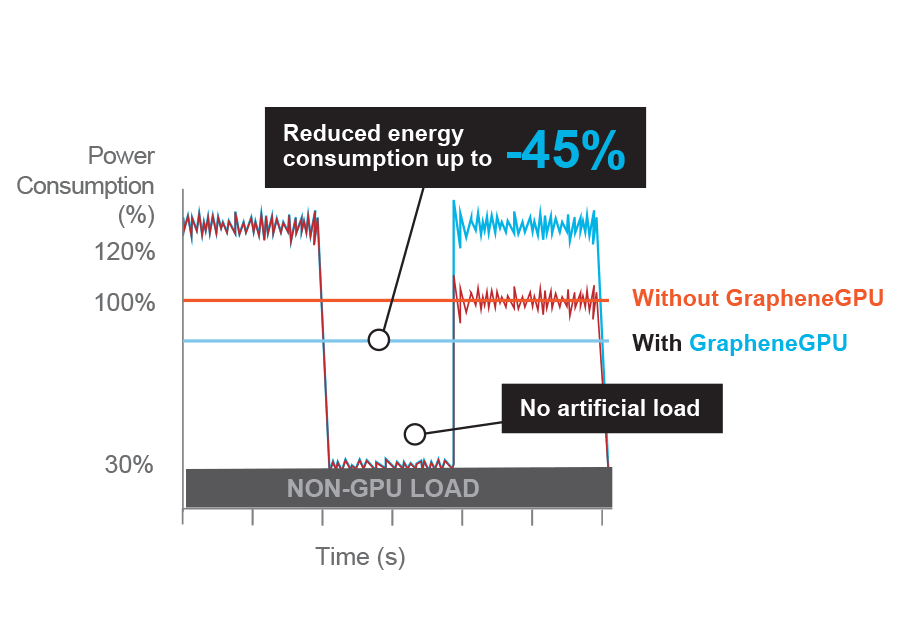

Reduce Heat Generation by up to 45%
Eliminating artificial compute loads saves up to 45% energy, reducing energy spend on and required cooling.
- Improved OPEX by reducing energy spend & required cooling.
- Reduce data center energy consumption.
- 45% less heat generation.
- Reduced needed cooling, reducing OPEX.
Only achievable with Skeleton
- Curved Graphene based supercapacitors
- Proprietary software & power electronics
Product's details
Powering AI's Exponential Growth
Unlock Your GPUs' Full Potential
GrapheneGPU delivers power when GPUs compute, and charges when GPUs are idle. Maintaining a smooth power demand from the grid, and eliminating the need for dummy loads.
+ Peak Shaving Capacitor Shelf (PCS)
+ 48 VDC interface voltage
+ 60 kW peak power
+ ORV3 compatible, 1OU high
+ Air-cooled and liquid-cooled options available
+ Intelligent control and integrated BMS
+ Supercapacitor energy storage based on Skeleton's patented Curved Graphene technology
Dynamic Reaction Speed
10 µs
Voltage
48V
Peak Power
1250 A
Continuous Power
830 A
Unlock Your GPUs' Full Potential
GrapheneGPU delivers power when GPUs compute, and charges when GPUs are idle. Maintaining a smooth power demand from the grid, and eliminating the need for dummy loads.
+ Peak Shaving Capacitor Shelf (PCS)
+ 400 VDC interface voltage
+ 160 kW peak power
+ ORV3 compatible, 4OU high
+ Air-cooled and liquid-cooled options available
+ Intelligent control and integrated BMS
+ Supercapacitor energy storage based on Skeleton's patented Curved Graphene technology
Dynamic Reaction Speed
10 µs
Voltage
400V
Peak Power
400 A
Continuous Power
300 A

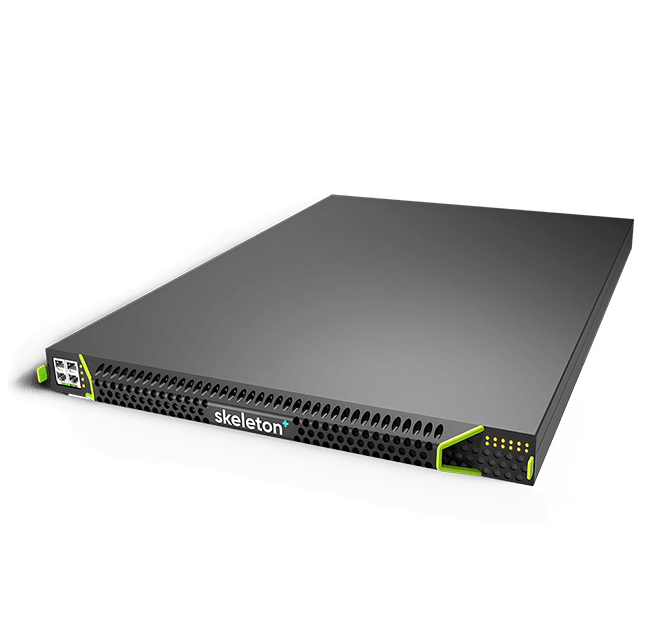

GrapheneGPU 50 PCS
GrapheneGPU delivers power when GPUs compute, and charges when GPUs are idle. Maintaining a smooth power demand from the grid, and eliminating the need for dummy loads.
+ Peak Shaving Capacitor Shelf (PCS)
+ 48 VDC interface voltage
+ 60 kW peak power
+ ORV3 compatible, 1OU high
+ Air-cooled and liquid-cooled options available
+ Intelligent control and integrated BMS
+ Supercapacitor energy storage based on Skeleton's patented Curved Graphene technology

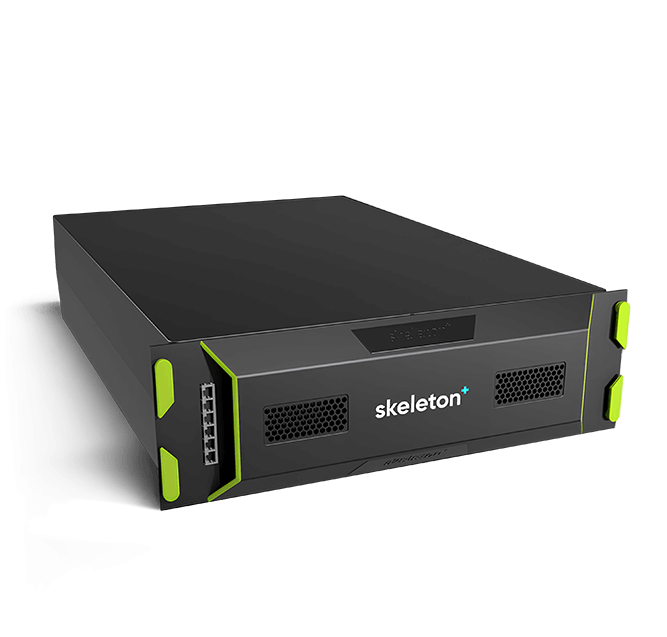

GrapheneGPU 400 PCS
GrapheneGPU delivers power when GPUs compute, and charges when GPUs are idle. Maintaining a smooth power demand from the grid, and eliminating the need for dummy loads.
+ Peak Shaving Capacitor Shelf (PCS)
+ 400 VDC interface voltage
+ 160 kW peak power
+ ORV3 compatible, 4OU high
+ Air-cooled and liquid-cooled options available
+ Intelligent control and integrated BMS
+ Supercapacitor energy storage based on Skeleton's patented Curved Graphene technology
Applications
Energy
storage solutions
for your unique needs
Modules and systems, designed and certified datacenter peak load shaving.
Talk to us
Talk To Sales
Building an AI datacenter? or Upgrading an existing site? Connect with an expert today and let's map your application requirements in detail.
