One of the major downsides of batteries is safety, and the dangers of batteries are well-publicized. After all, who hasn't heard of the Samsung Note 7 battery debacle? Many major airlines refused to seat passengers that wouldn't part with their Note 7 phones, but already before this particular case, the US Federal Aviation Administration, among others, was concerned about lithium-ion batteries onboard aircrafts.

Watch video now

What makes lithium-ion batteries unsafe?

The reason why ultracapacitors are significantly safer than lithium-ion batteries has to do with the fact that lithium-ion batteries contain lithiated materials and a flammable electrolyte that combusts when exposed to ambient air and humidity. In addition, it's very difficult to put out a lithium-ion battery fire, because lithiated material generates hydrogen when in contact with water, which makes the fire self-sustaining, and of course, throwing more water on the fire just fuels it further.

In the unlikely event that an ultracapacitor catches flame, it can be easily extinguished with water, which dilutes the electrolyte enough so that it can't burn anymore.

Five ways to spend your day with ultracapacitors

We tested, and by testing I mean abused, our SkelCap SCA0500 ultracapacitor cells to confirm what we already knew about ultracapacitor safety, and to get a thorough understanding on how ultracapacitors react in different, extreme circumstances.

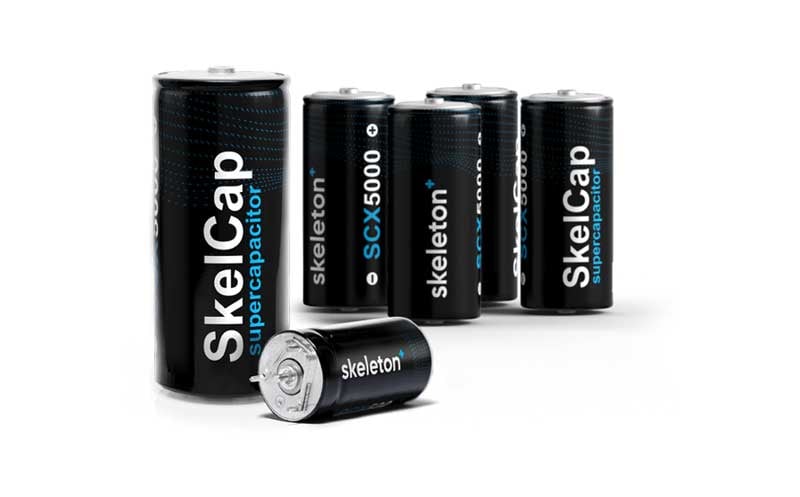

We used the Skeleton Technologies SkelCap SCA0500 cell for our ultracapacitor safety testing. The SCA0500 cell is a part of the SkelCap industrial cell product family, which has the highest power and energy density out of any ultracapacitors on the market.

The SCA0500 cell has a capacitance of 500 farads, and a nominal voltage of 2.85V. For each part of the test, we charged the cell to its nominal voltage to simulate the real-life behaviour of the ultracapacitor. The SCA0500 cell has a specific power value of 110 kW per kg, and specific energy of 5,5 Wh per kg. You can download the SkelCap SCA data sheet here.

Burning

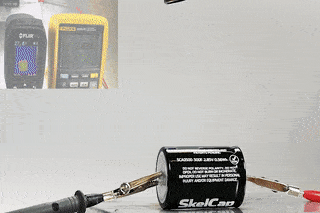

We directed a flame toward the ultracapacitor from about 10-15 centimeters away. The temperature on the cell surface quickly rose to more than 400 °C, or 752 °F, at which point our thermal camera got overloaded. Once the pressure inside the cell reached a critical point, the cell's safety valve opened and released the electrolyte and decomposition product vapor, which evaporated instantly. It's worth noting, that no explosion or combustion took place when the cell was exposed to open fire. The safety valve worked perfectly, and relieved the internal pressure of the cell as it reached 12±2 bar.

Nail penetration


Next up was the nail penetration test, which was done to simulate internal short-circuiting of an ultracapacitor. We simply pushed a nail through the cell casing while the cell was charged at 2.85V, which resulted in some electrolyte vapors releasing. Once again, you'll see no explosions or combustion, which highlights the safety of our ultracapacitor technology.

Short circuiting

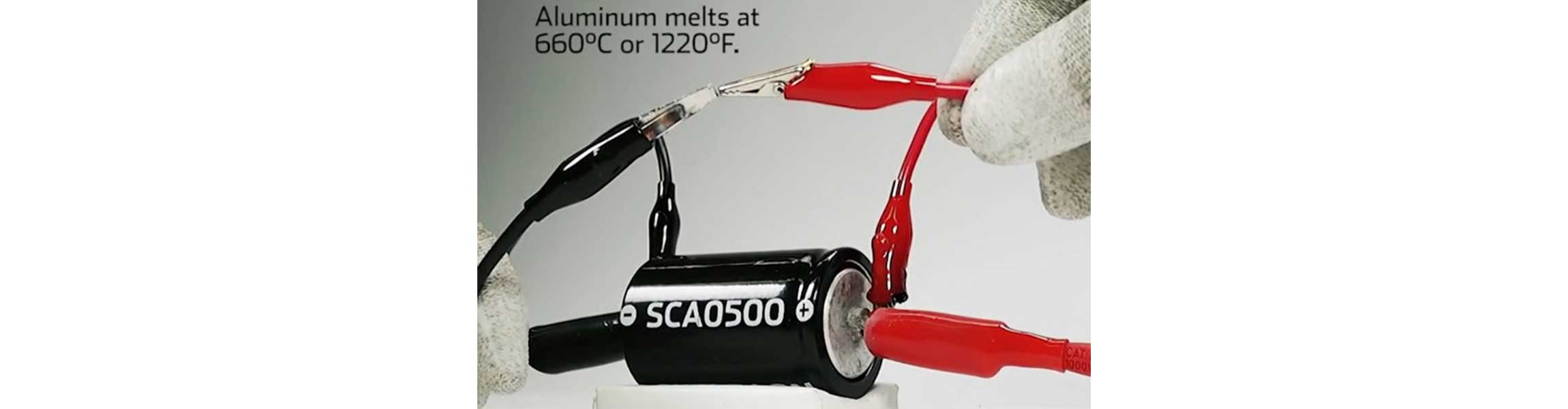

The SCA0500 ultracapacitor is very powerful despite its small size. We short circuited the cell by attaching wires to the cell terminals, and using a piece of aluminum to connect the other ends of the wires. As you can see on the video, the aluminum melts in seconds. The melting point of aluminum is 660 °C or 1220 °F.

Short circuiting the cell doesn't harm the cell, and it remains fully functional after being short circuited. Of course it should be taken into consideration that while the cell is unharmed, other parts in the circuit might suffer some damage.

Overcharging

Overcharging the ultracapacitor was done by charging it with 10 amperes at 3.3 volts. This caused the cell to heat up, and similarly to the burning test, pressure built up inside the cell due to electrolyte decomposition and increase in temperature. Safety valve to the rescue! At 12±2 bar, the safety valve opens and releases the internal pressure.

Overcharging the cell was the moment we got the most action during our safety testing, as the releasing electrolyte vapors ripped the cell sleeve open. But once again, you'll see no explosion, no combustion. Ultracapacitors are a remarkably safe way to store energy.

Crushing

The last test, crushing the ultracapacitor with a hydraulic press, turned out to be perhaps the least eventful of the five tests performed. The cell, charged to its nominal voltage of 2.85V, releases a small amount of bulk electrolyte as it is crushed. No fireworks, no explosions. Just a controlled, slow flow of electrolyte out of the cell.

Ultracapacitors are the pinnacle of safety in energy storage

So, there you have it. Compared to batteries, ultracapacitors are an extremely safe way to store energy. Will Samsung turn to ultracapacitors to power the next generation Note? No, because batteries have high energy density, which makes them great for applications such as mobile phones. But the fact remains that while lithium-ion batteries are generally safe and fairly reliable, they can be very dangerous in a number of situations, and possess a high risk of explosion and combustion when exposed to shock or extreme heat. If you are curious to read more, check out our infographic on the differences between ultracapacitors and batteries.
